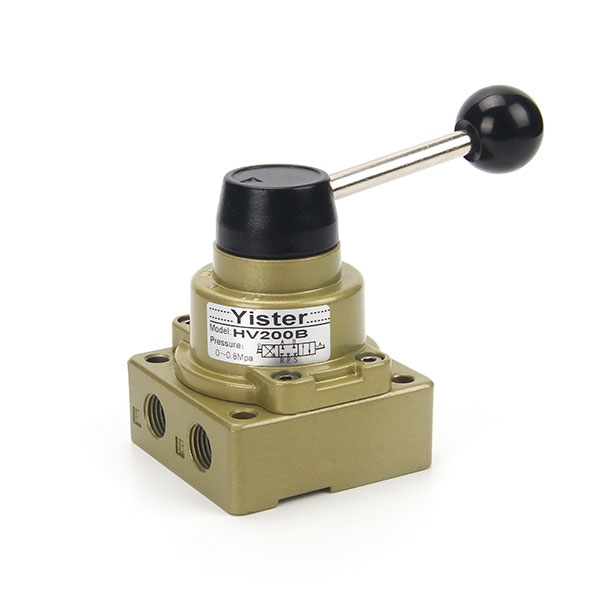

HV200 Series Hand Rotary Valve
HV Series Hand Switching Rotary Valve
Order cdoe

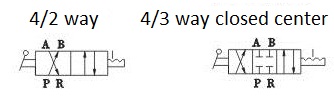

Symbol
Technical parameter
Model
HV200A-02
HV230A-02
HV200B-02
HV230B-02
HV300-02
HV330-02
HV300-03
HV330-03
HV300-04
HV330-04
Fluid
Air
Acting
Manual control direct acting type
Port size
In=Out=G1/4”
In=Out=G3/8”
In=Out=G1/2”
Valve type
4/2 way
4/3 way
4/2 way
4/3 way
4/2 way
4/3 way
4/2 way
4/3 way
4/2 way
4/3 way
Pressure range
0.15-0.8MPa
Proof pressure
1.5MPa
Temperature
-10℃~60℃

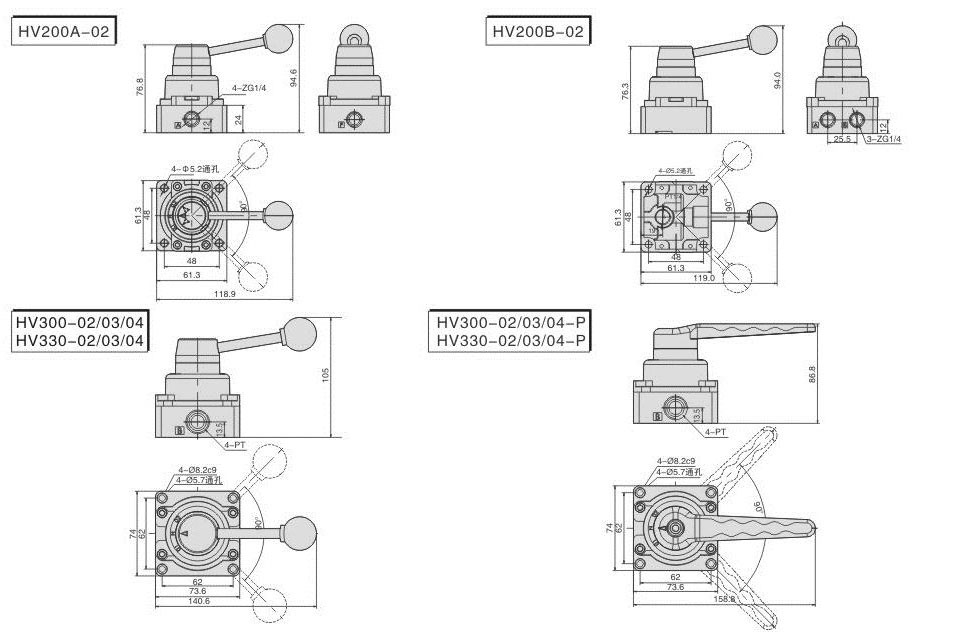

Dimension
Feature
HV Series Hand Lever 4 Ports 3 Position Control Mechanical Valve Port size G1/4" G3/8" G1/2"
Effective Cross Section Area 30mm2(CV=1.68) 18mm2(CV=1.00)
Working Medium Air(to be filtered by 40μ filter element)
Working Pressure 0~0.8MPa
Temperature 0~60C degree
