Hand Lever Valve -

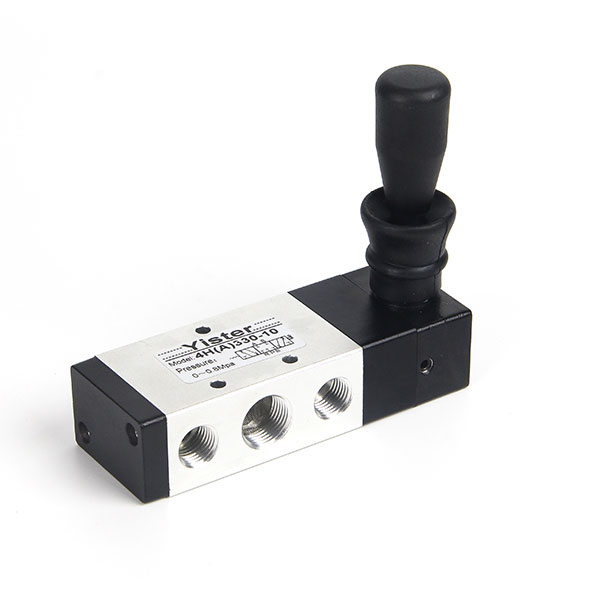

4H300 Series Hand Lever Valve 4H300 Series Hand Lever Valve
產(chǎn)品參數(shù)

4H310-08/10 4H330-08/10 type 5/2way pneumatic hand lever control valve with spring return or manual return

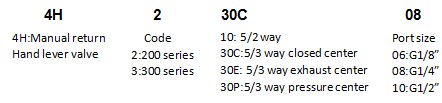

Order code

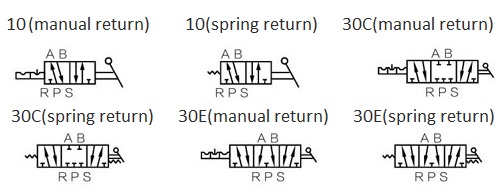

Symbol


Technical parameter

Model

4H210-06

4HA210-06

4H230-06

4HA230-06

4H210-08

4HA210-08

4H230-08

4HA230-08

4H310-08

4HA310-08

4H330-08

4HA330-08

4H310-10

4HA310-10

4H330-10

4HA330-10

Fluid

Air

Acting

Manual control direct acting type

Valve type

5/2 way

5/3 way

5/2 way

5/3 way

5/2 way

5/3 way

5/2 way

5/3 way

Orifice size

14.0mm2

12.0mm2

16.0mm2

12.0mm2

25.0mm2

18.0mm2

30.0mm2

18.0mm2

Lubrication

No required

Port size

In=out=Exhaust=G1/8

In=out=G1/4

Exhaust=G1/8

In=out=Exhaust=G1/4

In=out=G3/8

Exhaust=G1/4

Protective class

IP65

Pressure range

0-0.8MPa

Proof pressure

1.2MPa

Material of body

Aluminum Alloy

Temperature

-20℃~60℃

Operating angle

±15°

±8.5°

±15°

±8.5°

±18°

±10°

±18°

±10°

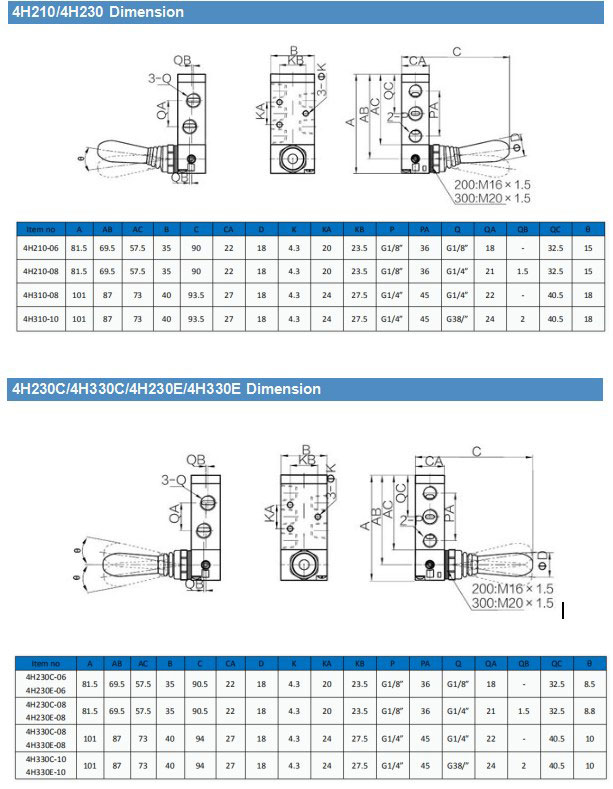

Dimension


Feature

.4H310 4H330 hand return directional control valve is 5 port hand valve

.with high response and stability nature.

.There are two motion pattern, single-head double-position and single-head three position.

.5/2way hand valve and 5/3 way manual valve are available.

.4H310 hand lever valve is Manual return operated valve and 4HA210 pneumatic solenoid valve is spring retun hand control valve

4H330C:5/3 way closed center hand pull valve

4H330E: 5/3 way exhaust center hand operated valve

4H330P:5/3 way pressure center pneumatic hand control valve

.Pneumatic control valve is the pneumatic system to control the flow of air pressure, flow and flow direction, and ensures the normal work of pneumatic actuator components or institutions of all kinds of pneumatic components.
