Hand Lever Valve -
4H300(New type) Series Hand Lever Valve 4H300(New type) Series Hand Lever Valve
產(chǎn)品參數(shù)

Airtac type 4H310 Series 5 port 2 postion manual control Hand valve

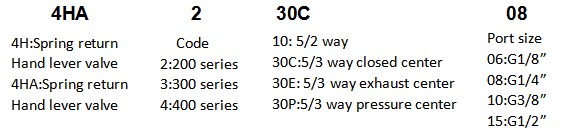

Order code

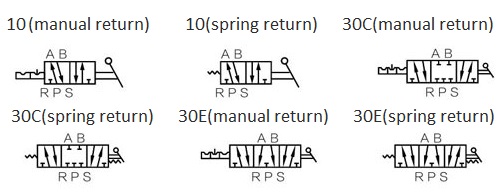

Symbol


Technical parameter

Model

4H210-08

4HA210-08

4H230-08

4HA230-08

4H310-08

4HA310-08

4H330-08

4HA330-08

4H310-10

4HA310-10

4H330-10

4HA330-10

4H410-15

4HA410-15

4H430-15

4HA430-15

Fluid

Air

Acting

Manual control direct acting type

Valve type

5/2 way

5/3 way

5/2 way

5/3 way

5/2 way

5/3 way

5/2 way

5/3 way

Orifice size

16.0mm2

12.0mm2

25.0mm2

18.0mm2

30.0mm2

18.0mm2

30.0mm2

18.0mm2

Lubrication

No required

Port size

In=out=G1/4

Exhaust=G1/8

In=out=Exhaust=G1/4

In=out=G3/8

Exhaust=G1/4

In=out=Exhaust=G1/2

Protective class

IP65

Pressure range

0-0.8MPa

Proof pressure

1.2MPa

Material of body

Aluminum Alloy

Temperature

-20℃~60℃

Operating angle

±15°

±8.5°

±15°

±8.5°

±18°

±10°

±18°

±10°

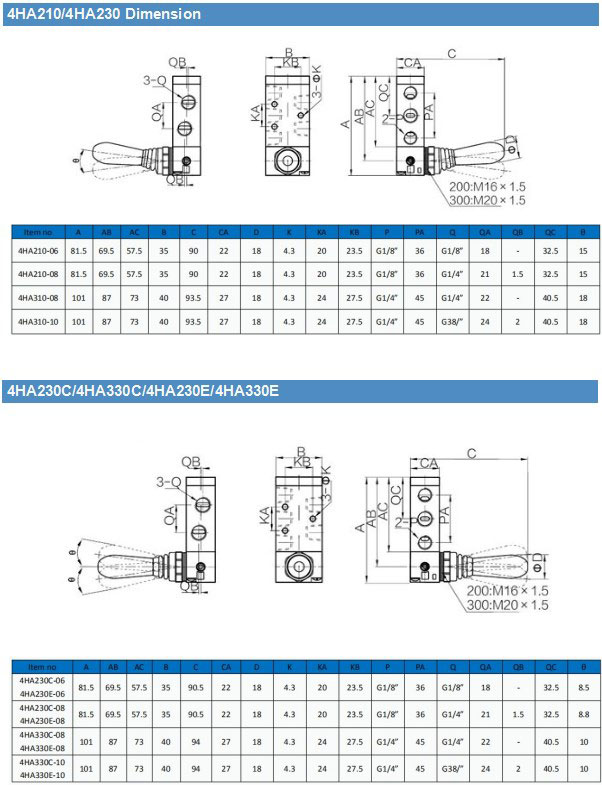

Dimension


Feature

.4HA Series Spring Return Hand Lever Air Valve 5/2 5/3 Way 4HA310-08 4HA330C-08 4HA330E-08 4HA310-10 4HA330C-10 4HA330E-10

. Manual operation, smooth actuation,and exact and reliable orientation;

. Sliding column structure has good tightness and light weight and is easy to install and dismount;

. Internal hole adopts special processing technology which has little attrition friction, long service life;

. No need to add oil for lubrication;

. Panel-mounting makes it convenient to install and apply.
