Hand Lever Valve -
4H200(New type) Series Hand Lever Valve 4H200(New type) Series Hand Lever Valve
產(chǎn)品參數(shù)

New type Airtac type 5/3 way Manual control Hand operated push pull valve 4H210-06/08 with spring return

Order code

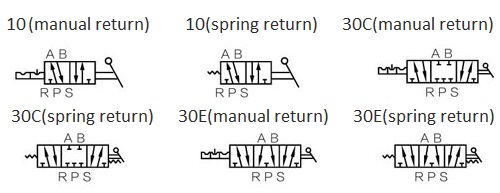

Symbol


Technical parameter

Model

4H210-06

4HA210-06

4H230-06

4HA230-06

4H210-08

4HA210-08

4H230-08

4HA230-08

4H310-08

4HA310-08

4H330-08

4HA330-08

4H310-10

4HA310-10

4H330-10

4HA330-10

Fluid

Air

Acting

Manual control direct acting type

Valve type

5/2 way

5/3 way

5/2 way

5/3 way

5/2 way

5/3 way

5/2 way

5/3 way

Orifice size

14.0mm2

12.0mm2

16.0mm2

12.0mm2

25.0mm2

18.0mm2

30.0mm2

18.0mm2

Lubrication

No required

Port size

In=out=Exhaust=G1/8

In=out=G1/4

Exhaust=G1/8

In=out=Exhaust=G1/4

In=out=G3/8

Exhaust=G1/4

Protective class

IP65

Pressure range

0-0.8MPa

Proof pressure

1.2MPa

Material of body

Aluminum Alloy

Temperature

-20℃~60℃

Operating angle

±15°

±8.5°

±15°

±8.5°

±18°

±10°

±18°

±10°

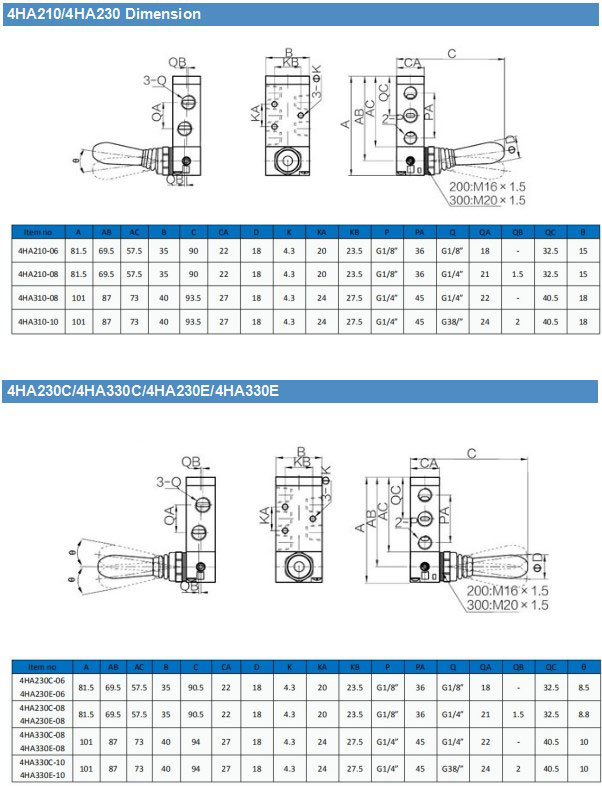

Dimension


Feature

.4HA Series Spring Return Pneumatic Hand Lever Valve ,center closed type is available, valve body size have many sizes, different superficial treatments are available

. Manual operated

. Smooth and reliable performance

.Low friction manufacturing technology increasing life

. No lubrication required

.Easy panel mounting

.Various working styles are available
