Air treatment unit oil separator AFR2000/BFR2000/BFR3000/BFR4000 air pressure regulator with gauge

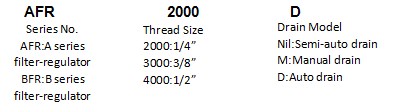

Order code
Symbol
Technical parameter
Model
AFR2000
BFR2000
BFR3000
BFR4000
Port size
1/4”
1/4”
3/8”
1/2”
Range pressure
0.05~0.85Mpa
Proof Pressure
1.5Mpa(15.3kgf/cm2)
Max.Operating Pressure
0.95Mpa(10.2kgf/cm2)
Temperature
5℃~60℃
Filtration
40μm
Filter bowl capacity
15CC
60CC
60CC
60CC
Body material
Aluminum alloy
Bowl material
PC
Bowl guard
Without guard
With guard
With guard
With guard
With guard

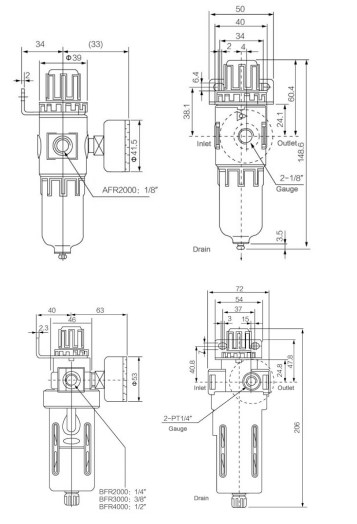

Dimension
Feature
.Airtac type 1/4 inch AFR2000 BFR2000 BFR3000 BFR4000 series Air source treatment Pneumatic Regulator Filter and Pressure Gauge meets temperature Range: 5-60 Degree
. Max.Adjusting pressure of 0.95Mpa
. Body Material: Aluminum Die-casting Forming
. Prepares Air Properly For All Types Of Compressed Air Tools And Equipment
.The Filter Removes Solid Particles And Condensates With Compressed Air
Step Less Regulator Accurately Maintains Air Pressure Over A Wide Range Of Flows
.Protect Your Air Tools With Much Longer Life
