AFC、BFC Series FR.L. UNITS
AFC2000 BFC2000/BFC3000/BFC4000 Two union combination Pneumatic Air Filter Regulator And Lubricator

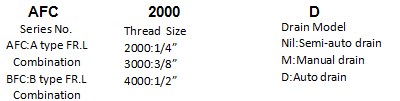

Order code

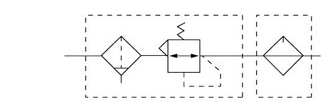

Symbol
Technical parameter
Model
AFC2000
BFC2000
BFC3000
BFC4000
Combinations
Filter
AFR2000
BFR2000
BFR3000
BFR4000
Lubricator
AL2000
BL2000
BL3000
BL4000
Port size
1/4”
1/4”
3/8”
1/2”
Range pressure
0.05~0.85Mpa
Proof Pressure
1.5Mpa(15.3kgf/cm2)
Max.Operating Pressure
0.95Mpa(10.2kgf/cm2)
Temperature
5℃~60℃
Filtration
40μm
Suggested Lubricating Oil
Turbine No.1 Oil(ISOVG32)
Filter bowl capacity
15CC
60CC
60CC
60CC
Lubricator bowl capacity
25CC
90CC
90CC
90CC
Body material
Aluminum alloy
Bowl material
PC
Bowl guard
Without guard
With guard
With guard
With guard
With guard

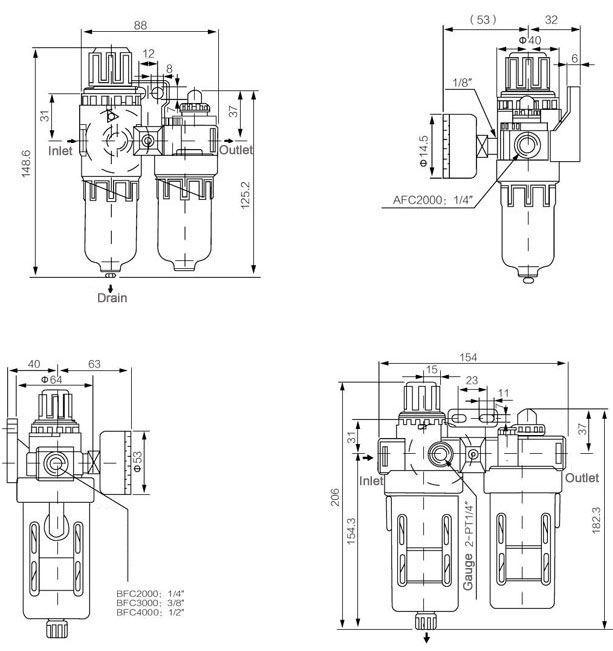

Dimension
Feature
.Airtac type FRL air source treatment units AFC air combination includes AFR2000/BFR2000/BFR3000/BFR4000 air filter regulator+AL2000/BL2000/BL3000/BL4000 air oil lubricator two units, parts number are AFC2000 BFC2000 BFC3000 BFC4000
.Simple structure in linear type ,easy in installation and maintenance
. Adopting advanced world famous brand components in
pneumatic parts ,electric parts and operation parts
. High pressure double crank to control the die opening and closing.
.Running in a high automatization and intellectualization,no pollution
