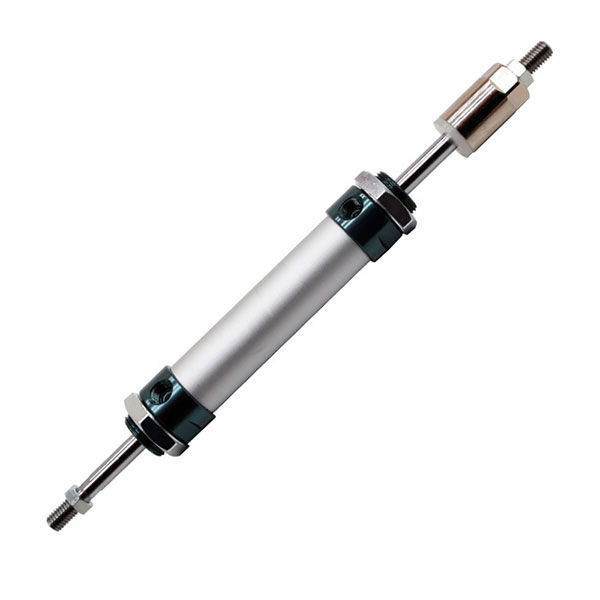

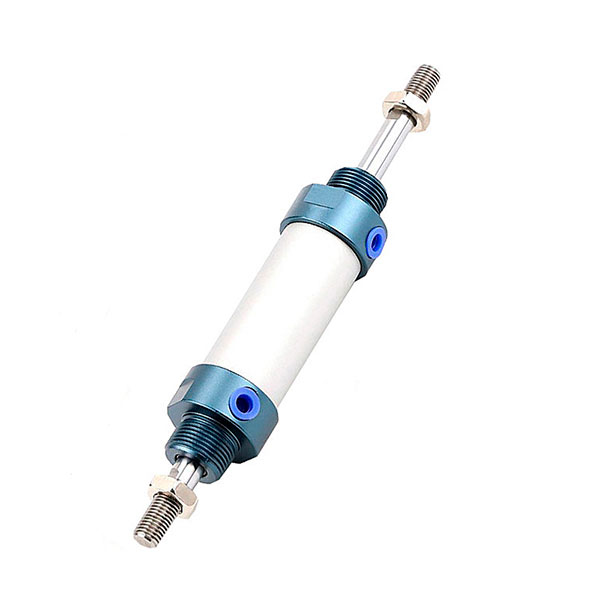

MAL Series Aluminum Alloy Mini Cylinder
MAL Series Aluminum Alloy Low Speed Multi-mounting Small Mini Air Cylinder

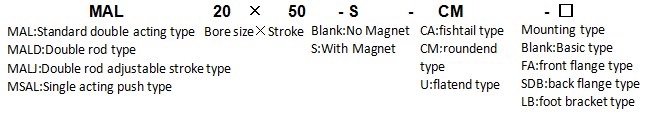

Order code

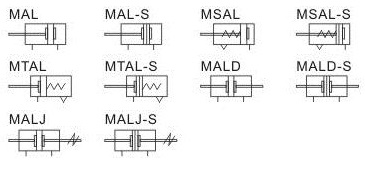

Symbol
Technical parameter
Bore size(mm)
16
20
25
32
40
Acting type
Double acting
Fluid
Air
Operating pressure
0.1~1.0MPa
Proof pressure
1.5MPa
Temperature ℃
-20~70
Speed range mm/s
30~800
Cushion type
Standard type
Anti-crush cushion
Bumper type
Adjustable cushion
Port size
M5
1/8”
1/4”
Stroke
Bore size
(mm)
Standard stroke
(mm)
Max.stroke
(mm)
Allowable stroke
(mm)
16
25 50 75 80 100 125 150 160 175 200
300
500
20
25 50 75 80 100 125 150 160 175 200 250 300
500
650
25
25 50 75 80 100 125 150 160 175 200 250 300 350 400 450 500
500
650
32
40

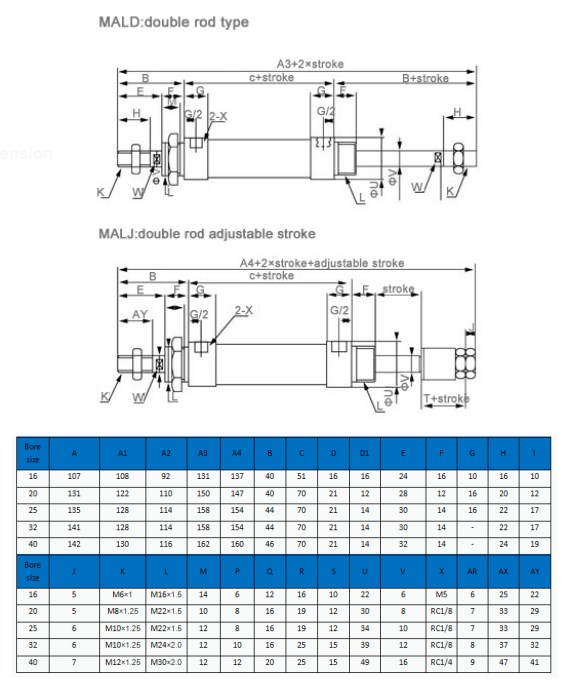

Dimension
Feature
.MAL mini cylinder is adapt the bearing with oil, lubrication is not required for the piston rod.
.Not only the fixed cushion, the adjustable cushion is also optional in the end of the cylinder, so that it will be calm when changing the directions.
.Heat resistance performance With anti-heat material, the working temperature of the cylinder could be up to 150℃
. Mluti installation accessories are available
. A magnet is installed on the piston, by switching the button to check the operation position of the cylinder
