VF3430(DS3430) Soleniod Valve
VF3430 DS3430 5 port solenoid valve

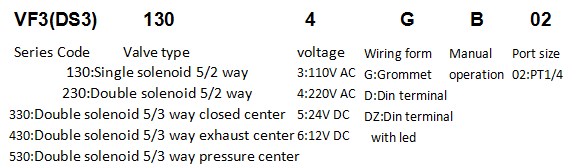

Order code

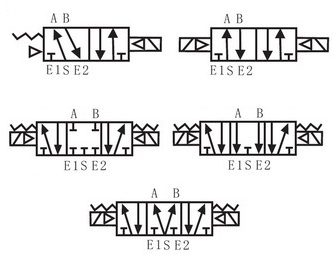

Symbol
Technical parameter
Model
VF3130(DS3130)
VF3230(DS3230)
VF3330(DS3330)
VF3430(DS3430)
VF3530(DS3530)
Fluid
Air
Acting
Internal pilot
Valve type
5/2 way
5/3 way
Orifice size
16.0mm2
16.0mm2
12.0mm2
12.0mm2
12.0mm2
Lubrication
No required
Port size
In=out=G1/4
Protective class
IP65
Pressure range
0.15-0.8MPa
Proof pressure
1.2MPa
Material of body
Aluminum Alloy
Temperature
5℃~50℃
Response speed
<0.05s

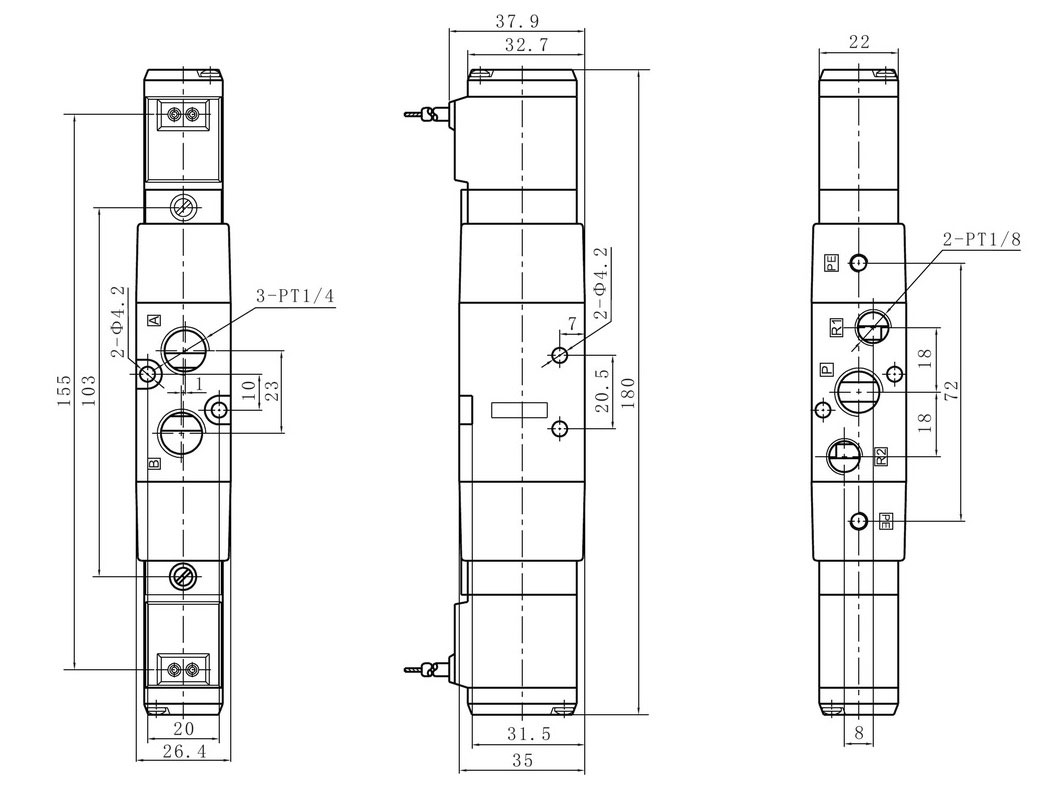

Dimension
Feature
Pneumatic solenoid valves can be found in a wide range of industries. They are used in Pneumatic fields for robotics and automation. Manufacturing companies that use conveyors belts uses pneumatic valves in their conveyor belt systems. Food and beverage manufacturers use them to make, dispense or preserve food and beverage products.
