4M300 Series Soleniod Valve
4M310-10 24V DC 5/2 way pilot NAMUR solenoid valve

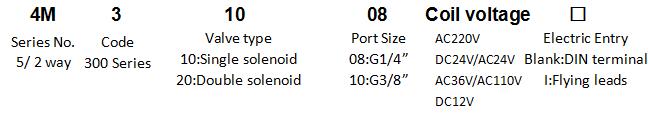

Order code

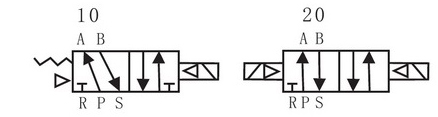

Symbol
Technical parameter
Model
4M310-08
4V320-08
4M310-10
4M320-10
Fluid
Air
Acting
Internal pilot
Valve type
5/2 way
Orifice size
25mm2
30mm2
Lubrication
No required
Port size
In=out=G1/4
In=G3/8,out=G1/4”
Protective class
IP65
Pressure range
0.15-0.8MPa(21~1145Psi)
Proof pressure
1.2MPa(170psi)
Material of body
Aluminum Alloy
Temperature
-5℃~60℃
Response speed
<0.05s

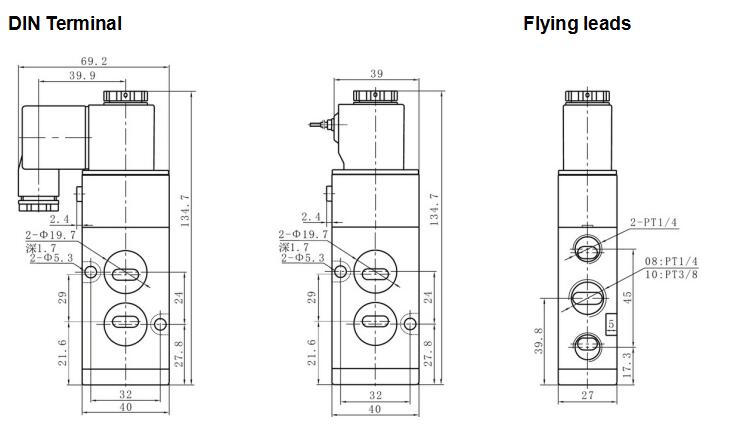

4M310-08/4M310-10 Dimension

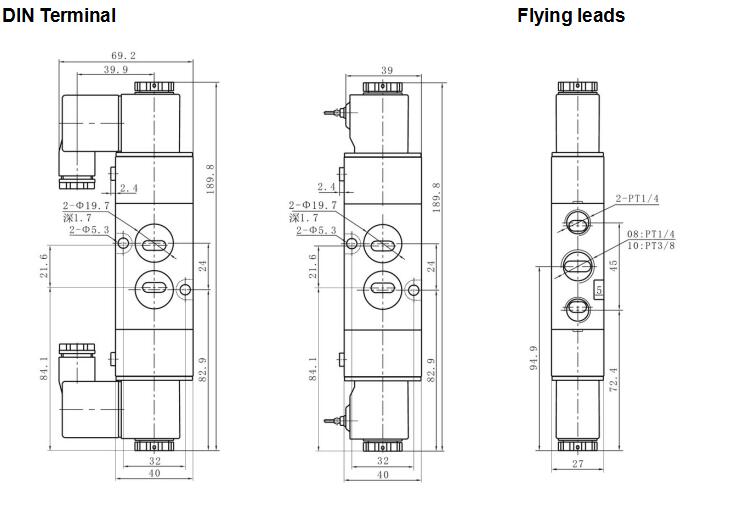

4M320-08/4M320-10 Dimension
Feature
.4M310-08 air Solenoid valve is a kind of industrial equipment controlled by electromagnetic,widely used in adjusting the direction of the media, flow, speed and other parameters in industrial control system.
.4M310-10 Solenoid valves control medium through the effect of electromagnetic, the main control mode is relay controlling.
.4M310 NAMUR solenoid valve can be combined with different circuits to achieve the control you expected,meanwhile the controlling accuracy and flexibility can be ensured.
