3V200 Series Soleniod Valve
3V210 Pneumatci solenoid valve 3V210-06 3V210-08 3V120-06 3V120-08

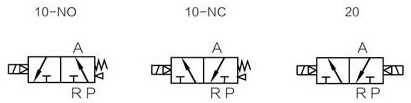

Symbol

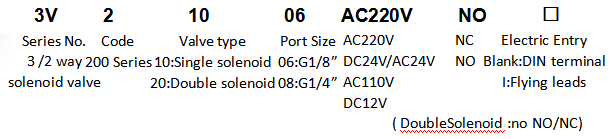

Order code
Technical parameter
Model
3V210-06
3V220-06
3V210-08
3V220-08
Fluid
Air
Acting
Internal pilot
Original state
NC(Normally closed),NO(Normally open);Double solenoid :no NC/NO
Lubrication
No required
Orifice size
14.0mm2
16.0mm2
Port size
In=out=G1/8
In=out=G1/4
Protective class
IP65
Pressure range
0.15-0.8MPa(21~114psi)
Proof pressure
1.2MPa(215psi)
Material of body
Aluminum Alloy
Temperature
-5℃~60℃
Response speed
<0.05s

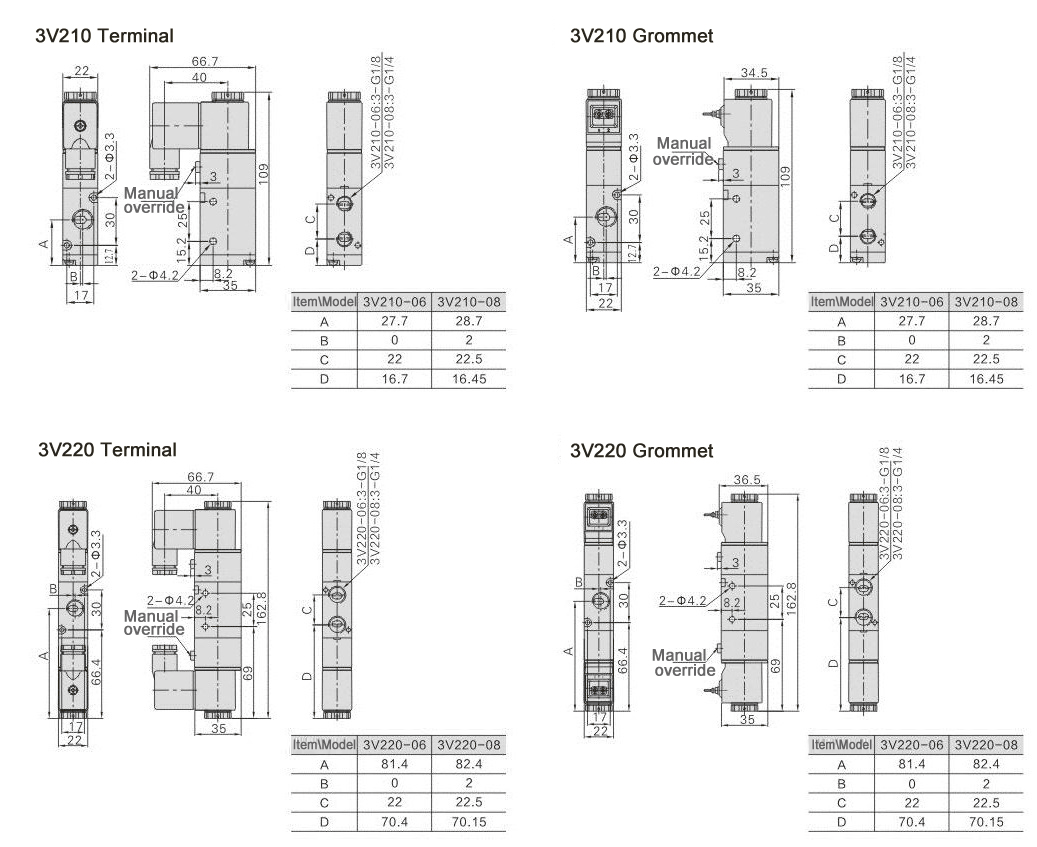

Drawing
Feature
.2 Position 3 Way Solenoid Valve (normally open)
.DC12V【Working Pressure】25~116Psi
.Valve stays open when the coil is de-energized- and it closes when energized..
.High-quality solenoid valve pilot head, sensitive response, response speed 5 times per second, stable performance.
