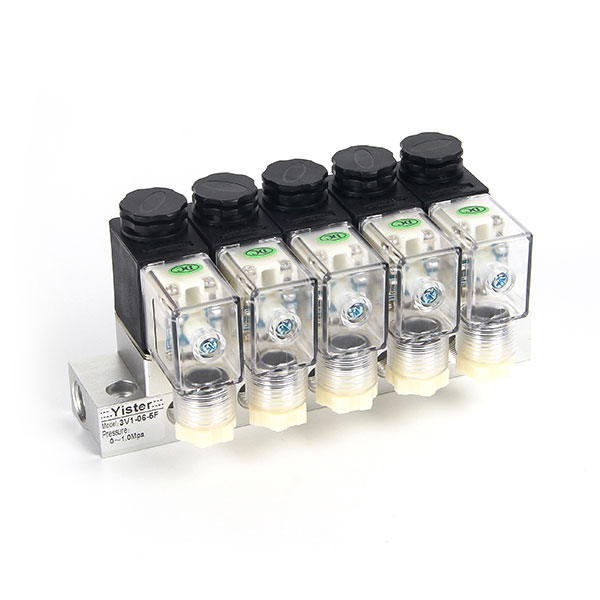

3V1 Series Solenoid Valve and units
3V1-M5/06 DC 12V/24V 3-Way 2-Position Normally Closed Electromagnetic Air Valve
Symbol

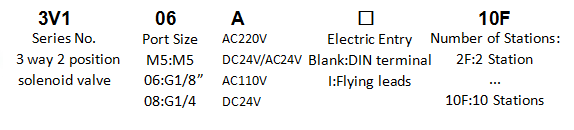

Order code
Technical parameter
Model
3V1-M5
3V1-06
3V1-08
Fluid
Air
Acting
Direct acting
Valve type
3 way 2 position
Lubrication
No required
Temperature
-20℃~70℃
Port size
M5
G1/8
G1/4
Viscosity limit
Under 20CST
Pressure range
0-0.8MPa(0~100psi)
Proof pressure
1.5MPa(215psi)
Orifice size
Φ1mm
Material of body
Aluminum alloy
Response speed
<0.05s

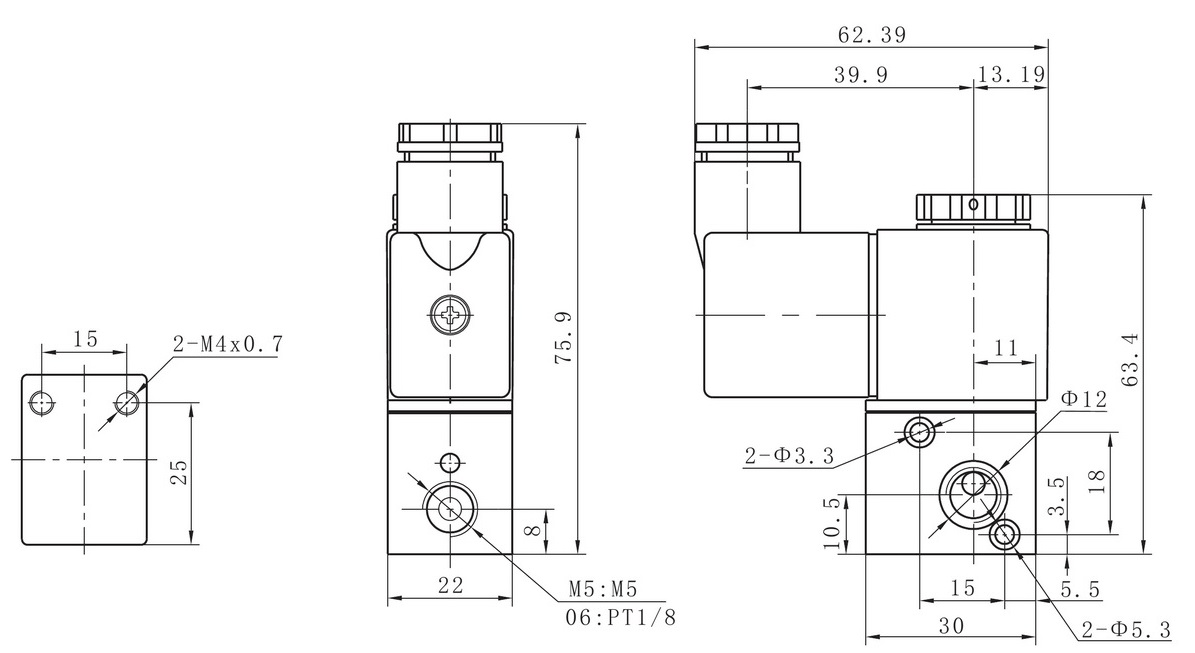

3V1-M5/06 Drawing

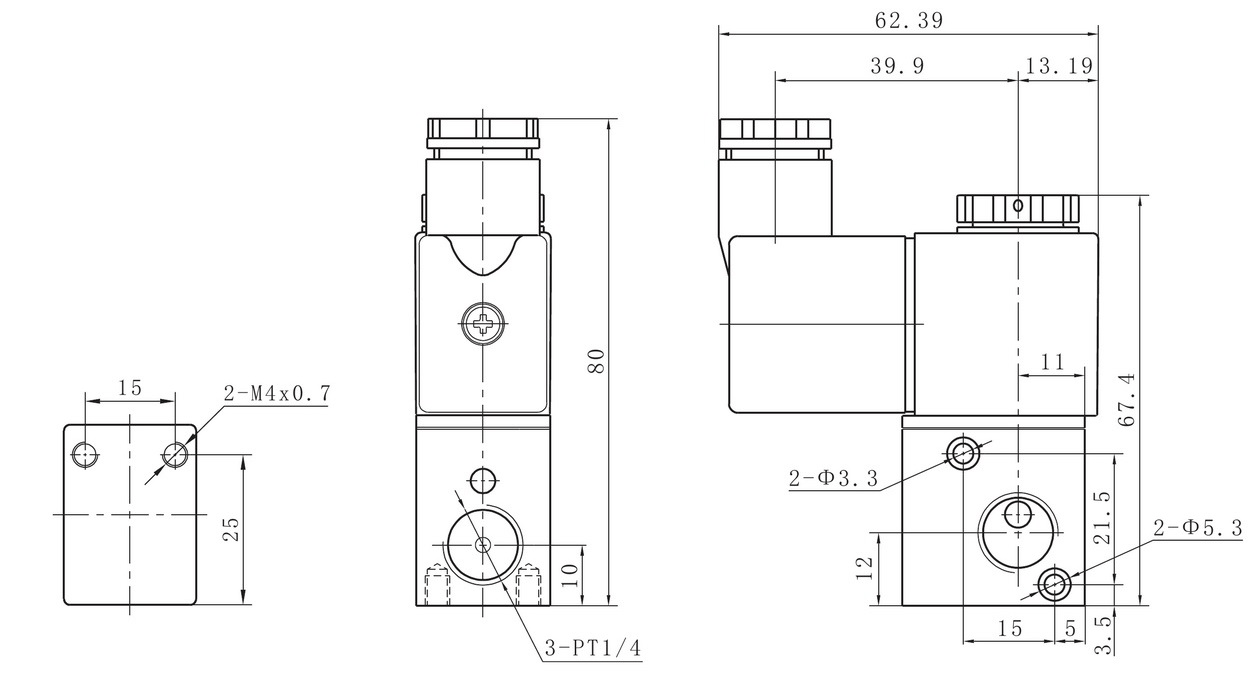

3V1-08 Drawing
Feature
.This solenoid air valve is made of high quality brass material, and durable in use
.This is direct acting type normally closed solenoid air valve, which is sensitive to change direction
.Sturdy body have a long lifespan, perfect for electrically driven pneumatic power control
.The inner valve core and spring are made of stainless steel and will not rust, no need additional lubricate
.With solenoid operated for control appropriate flow and direction, provide great performance
